SEMI AUTOMATIC / AUTOMATIC

Single Station Press

  • High advanced latest technology machine
  • 400 ton Hydraulic press
  • Cycle time 50-70 secs
  • High Dense Product produced with Vacuum dewatering technology
  • Product thickness - 20-100 mm
  • Different textured & colored slabs can be produced
  • Working area - 1000 x 600 x 250
  • 3 Different linear stations
  • Wet concrete filling - by volumetric dispenser
  • Ejector Station
  • Green product handled by Tilting and vacuum carrier
  • Product turner for better finish
  • Product conveyed by pallet trolley to curing area
  • Empty transfer pallets feed through auto pallet handling system
  • Special products thickness can go upto 500mm

Main Assembly

  • Main Press
  • Wet Doser
  • Vacuum carrier
  • Tilting table carrier
  • Wet product stacker
  • Empty pallet loader

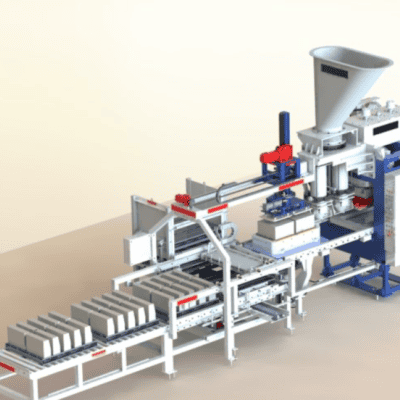

single station1

Product Capacity

Features No [email protected]% Area sq m
Kerb stone 900 x 215 x 125 1 612 118
Kerb stone 500 x 500 x 125 2 1224 306
Slab 400 x 400 x 80 2 1224 196
Slab 600 x 600 x 80 1 612 220
Rectangular 200 x 200 x 100 4 2448 98
