SEMI AUTOMATIC / AUTOMATIC

4 Station

  • High advanced technology machine
  • Combination 300 ton Hydraulic press with vibration
  • Cycle time 15-20 secs
  • Products manufactures with different top and Bottom layer material, color
  • Product thickness - 20-100 mm
  • Different textured & colored slabs can be produced
  • Working area - 650 x 650 x 100
  • 4 Different stations to reduce cycle time
  • Wet concrete filling station
  • Dry concrete filling station with pre-press
  • 300 ton Main Press station
  • Ejector Station
  • Green product handled by Tile carrier
  • Product turner for better finish
  • Product conveyed by pallet trolley to curing area

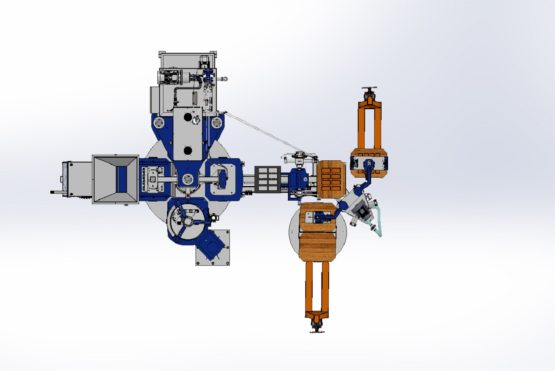

Main Assembly

  • Main Press
  • Dry side feeder
  • Wet Doser
  • Tile carrier
  • Product trunner
  • Wet product stacker
  • Empty pallet loader
4station2

Product Capacity

No [email protected]% Area sq m
UNI paver 225 x 112.5 x 60 8 13600 344
Rectangular 200 x 100 x 60 10 17000 340
UNI paver 225 x 112.5 x 80 6 10200 258
Rectangular 200 x 100 x 80 8 13600 272
Slab 600 x 600 1 1700 612
Slab 400 x 400 1 1700 272
