- Pallets are automatic feeded
- Green Product handled by stacker
- Product sent to curing chamber by racks with forklift
- Cycle time 18secs
- Steel Pallet size - 900 x 515 x 8
- Synchronised vibration by induction motor
- Continous Lubricated Vibrator
- Max/min product height 200/25

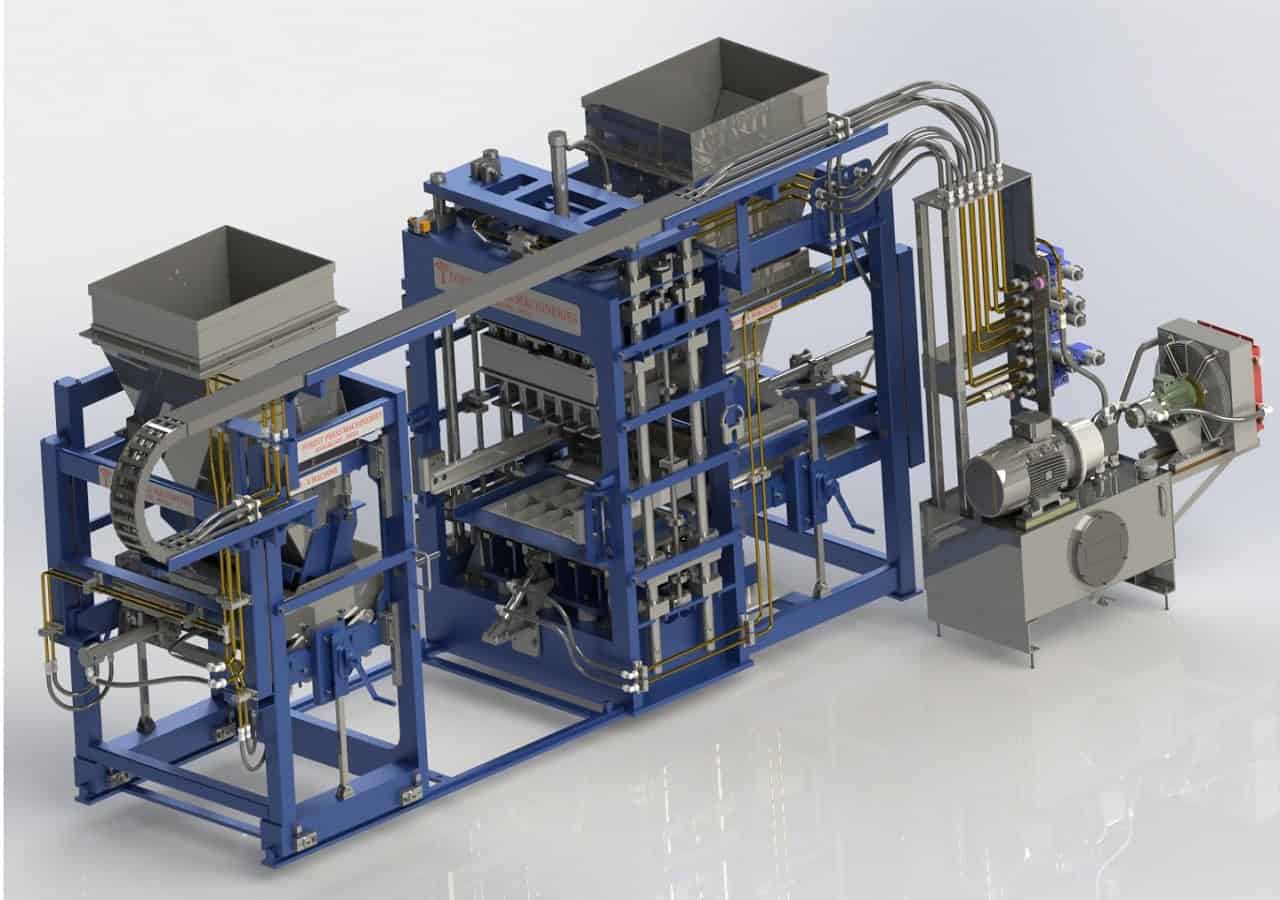

Main Assembly
- Base Mix
- Face Mix
- Wet side conveyor
- Stone Brush
- Roller conveyor
- Stacker
- Racks
- Destacker
- Dry side conveyor
- Board Brush
- Pallet turner
- Pneumatic Graber
- Out Put Frame Conveyor
- Oil spray system
- Board Hopper
- Board feeder
- Board Stopper
Product Capacity
| | | No 10hr@85% | Area sq m |
| Block | 400 x 200 x 200 | 4 | 6120 | 490 |
| 400 x 200 x 150 | 5 | 7650 | 612 |
| 400 x 200 x 100 | 8 | 12240 | 979 |
| UNI paver | 225 X 112.5 | 12 | 18360 | 465 |
| FLYASH | 230 X 110 X 75 | 12 | 18600 | 470 |
