SEMI AUTOMATIC / AUTOMATIC

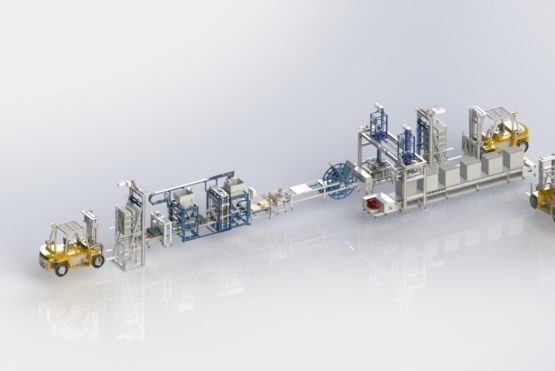

Block Plant - BM6

  • Pallets are automatic feeded
  • Green Product handled by stacker
  • Product sent to curing chamber by racks with forklift/Finger car
  • Cycle time 18secs
  • Steel Pallet size - 1200 x 660 x 12/45 wooden
  • Synchronised vibration by induction motor
  • Max/min product height 200/25
  • Rackhandling conveyor to minimize cycle time
  • U type of system to minimize shed area
  • Green product & Dry product can be handled separately
  • Flying bucket concrete system can be used

Main Assembly

  • Base Mix
  • Face Mix
  • Wet side conveyor
  • Stone Brush
  • Roller conveyor
  • Stacker
  • Racks
  • Green Rack conveyor
  • Destacker
  • Dry Rack conveyor
  • Dry side conveyor
  • Board Brush
  • Pallet turner
  • Pneumatic Graber
  • Out Put Frame Conveyor
  • Cross Conveyor
  • Board Hopper
  • Board feeder
  • Oil spray system
  • Board Stopper
BM6

Product Capacity

No 10hr@85% Area sq m
Block 400 x 200 x 200 6 6120 490
400 x 200 x 150 5 7650 612
400 x 200 x 100 9 13770 1100
UNI paver 225 x 112.5 12 18360 465
FLYASH 230 x 110 x 75 20 30600 770
