SEMI AUTOMATIC

BM - 3

  • Empty Pallet manual loading
  • Green product handling by Palletizer
  • No racks
  • Pallet trolley to move pallets to curing area
  • Cycle time 20secs
  • Steel Pallet size - 700 x 515 x 6
  • Synchronised vibration by induction motor
  • Max/min product height 200/40

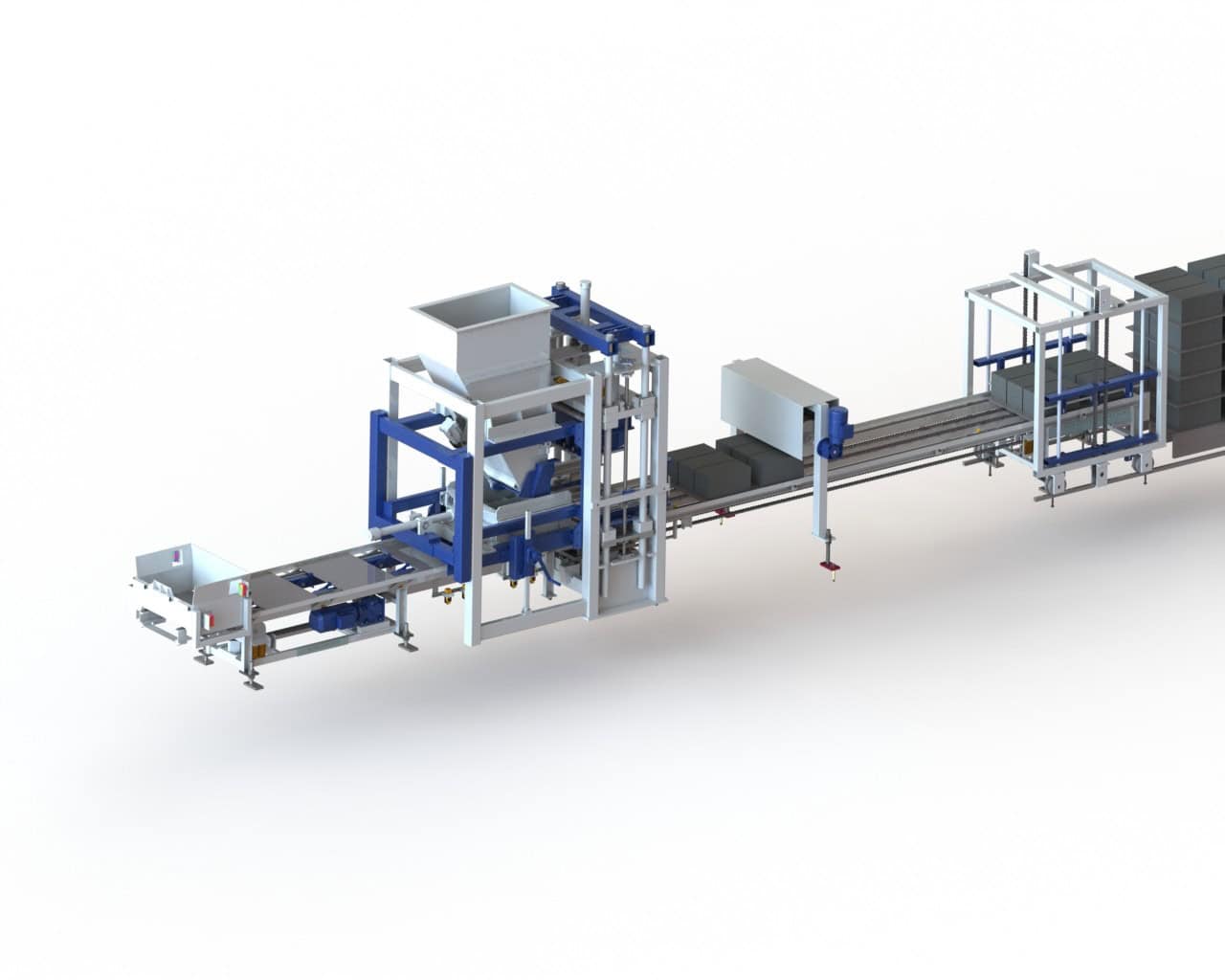

Main Assembly

  • Base mix
  • Face mix
  • Wet side chain conveyor
  • Palletizer upto 5 pallets
  • Pallet feeder
  • Stone Brush

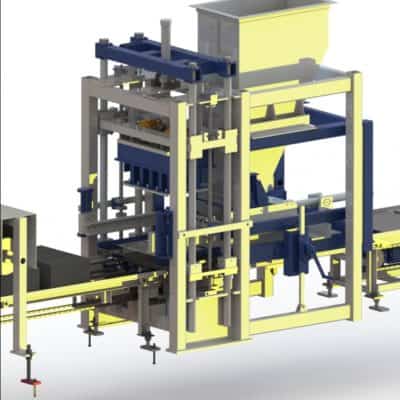

BM3A

Product Capacity

No [email protected]% Area sq m
Block 400 X 200 X 200 3 4500 360
400 X 200 X 150 4 6000 480
400 X 200 X 100 6 9000 720
UNI paver 225 X 112.5 8 12240 310
FLYASH 230 X 110 X 75 10 15300 385
