- Pallets are automatic feeded
- Green Product handled by V-Belt conveyor for smooth transport to Elevator
- Pallets are stacked in Elevator
- Product sent to cure chamber automated finger car system
- Cycle time 15-18 secs
- Pallet size - 1300 x 670 x 12/45 - steel/wooden
- Synchronized vibration by Servo motor
- Max/min product height 250/25
- Automatized packing system can be used
- To avoid human delays
- U type of system to minimize shed area
- Green product & Dry product can be handled separately
- Flying bucket concrete system
- Agitator for fast filling
- Multicolored dosing

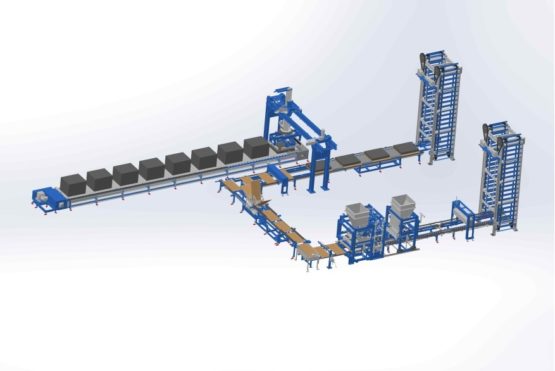

Main Assembly
- Base Mix
- Face Mix
- V-Belt conveyor
- Stone Brush
- Elevator
- Finger car
- Curing Chamber
- Air circulation system
- Lowerator
- Latch Conveyor
- Board Scrapper
- Board Brush
- Pallet turner
- Hydraulic cuber
- Out Put Frame Conveyor
- Cross Conveyor
- Board Hopper
- Board feeder
- Oil spray system
- Board Stopper
Product Capacity
|
|
|
No 10hr@85% |
Area sq m |
| Block |
400 x 200 x 200 |
9 |
13770 |
1102 |
|
400 x 200 x 150 |
12 |
18360 |
1469 |
|
400 x 200 x 100 |
18 |
27540 |
2203 |
| UNI paver |
225 x 112.5 |
25 |
38250 |
968 |
| Rectangular |
200 x 100 |
30 |
46000 |
920 |
